Product Detail

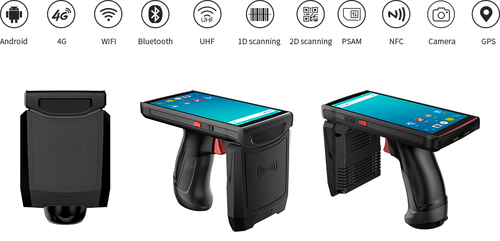

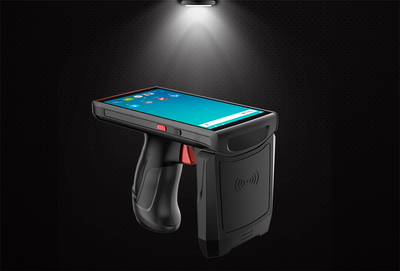

WD-HT70X high-performance processor PDA (honeywell 2D barcode scanner optional)
Item : 5.7 inch 4G Android PDA
Sales : 0
Details

Product description


WD-HT70X   3G RAM+32G ROM Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor 5.7inch IPS color display with resolution 720*1440 Android 9.0 osPDA

Product details


1. 5.7-inch HD Durable large Display with resolution 720*1440

2.Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor

3.Honeywell N3603 2D barcode scanner module optional

Prouduct specifications

Product parameters

Performance

Octa core

CPU

Cortex-A53 Octa-core 64-bit 2.0GHz

high-performance processor

RAM+ROM

3GB+32GB

Expand memory

Micro SD(TF) Supports up to 128GB

System

Android 9.0

Data communication

WLAN

Dual-band 2.4GHz / 5GHz,

Supporting IEEE 802 a/b/g/n/ac protocol

WWAN

2GGSM850/900/1800/1900mhz


3GWCDMA850/900/1900/2100mhz


4GFDD:B1/B3/B4/B7/B8/B12/B20


    TDD:B38/B39/B40/B41

Bluetooth

Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS

Transmission distance 5-10 meters

GNSS

Support Gps, Galileo, Glonass, Beidou

Physical parameter

Dimensions

159mm×75mm×124mm

Weight

500g

(Depends on device function configuration

Display

5.7 inch IPS color display with resolution 720*1440

TP

Corning gorilla glass, Supports multi-touch

Supported gloves and wet hands

Battery capacity

Rechargeable polymer battery (3.8V 5000MAh) removable


Standby time >350 hours


Working time > 12 hours


Charging time 3-4H, Using standard power

adapter and data cable

Expansion

Card slot

PSAM x 2, Nano SIM card x 1 , TF card × 1

Communication interface

Type-C USB x 1, OTG

Audio

Speaker (mono), Microphone, Earpiece

Keypad

Power button, Volume +/- button,Scan button × 2

Handle scan button ×1

Sensors

Gravity sensor, Light sensor, Proximity sensor,

Vibration motor


Data collection

Barcode scanning (Optional)

2D Imager scanner

Honeywell N3603

2D

Symbologies

PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,

Maxicode,Hanxin Code,etc.

UHF

Engine

Engine CM2000-1, based on Impinj Indy R2000

Frequency(CHN)

920-925MHz

Frequency(USA)

902-928MHz

Frequency(EHR)

865-868MHzETSI EN 302 208

Frequency(Other)

Other multinational frequency standards (can be customized)

Protocol

EPC C1 GEN2 / ISO18000-6C/6B

Antenna

Circularly polarized antenna (3dBi)

Power

30dBm, support +5dBm ~ +30dBm adjustment

Distance

0-13m

Reading speed

>200 tags per second (circular polarization)

Note:*Card reading distance and group reading rate are related to the actual environment

Camera

Rear camera

13MP HD camera,Support auto focus,

Flash, Anti-shake, Macro shooting

Front camera

2MP color camera

NFC

Frequency

13.56MHz

Protocol

Support ISO14443A/B, 15693 agreement

Distance

2cm-5cm

Language/input method

Input

English, Pinyin, Five strokes, Handwriting input, Support soft keypad

Language

Language packs in Simplified Chinese,

Traditional Chinese, English, Korean, Japanese, Malaysian,etc.

User environment

Operating temperature

-20 - 55

Storage temperature

-40 - 70

Environment humidity

5%RH--95%RH(no condensation)

Drop specification

6 sides Supports 1.2 meters drops and 30 times

to the concrete within the operating temperature

Rolling test

500×0.5m rolling for 6 sides

Sealing

IP66

Accessories

Standard

Adapter, Data cable, Protective film,

Instruction manual
