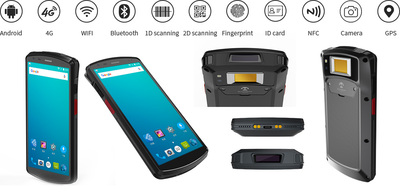

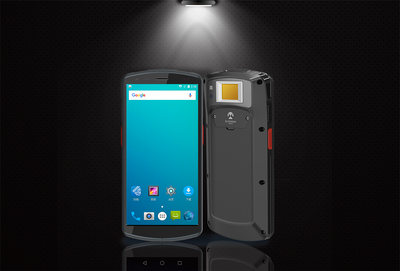

WD-HT80X industrial 5.7 inch Authentication fingerprint (Optional) PDA
Item : 5.7 inch 4G Android PDA
Sales : 0
Details

Product description


WD-TH80X

INDUSTRIAL-GRADE SMART HANDHELD TERMINAL

5.7-inch HD Durable large Display ·High speed Octa- core

Fingerprint recognition · ID card identification

Prouduct details

1.ID card identification Fingerprint   NFC are both optional

2.with barcode scanner(Honeywell N3603 2d barcode scanner module optional

3.Rechargeable polymer battery (3.8V5000MAh)


Product specifications


Product parameters

Performance

Octa core

CPU

Cortex-A53 Octa-core 64-bit 2.0GHz

high-performance processor

RAM+ROM

3GB+32GB

Expand memory

Micro SD(TF) Supports up to 128GB

System

Android 9.0

Data communication

WLAN

Dual-band 2.4GHz / 5GHz,

Supporting IEEE 802 a/b/g/n/ac protocol

WWAN

2GGSM850/900/1800/1900mhz


3GWCDMA850/900/1900/2100mhz


4GFDD:B1/B3/B4/B7/B8/B12/B20


    TDD:B38/B39/B40/B41

Bluetooth

Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS

Transmission distance 5-10 meters

GNSS

Support Gps, Galileo, Glonass, Beidou

Physical parameter

Dimensions

159mm×75mm×18mm

Weight

500g

(Depends on device function configuration

Display

5.7 inch IPS color display with resolution 720*1440

TP

Corning gorilla glass, Supports multi-touch

Supported gloves and wet hands

Battery capacity

Equipped with ID card function, battery (3.8V 3200MAh)


Rechargeable polymer battery (3.8V5000MAh)


Standby time >350 hours


Working time > 12 hours


Charging time 3-4H, Using standard power

adapter and data cable

Expansion

Card slot

Nano SIM card x 1 , TF card × 1

Communication interface

Type-C USB x 1, OTG

Audio

Speaker (mono), Microphone, Earpiece

Keypad

Power button, Volume +/- button,Scan button × 2

Handle scan button ×1

Sensors

Gravity sensor, Light sensor, Proximity sensor,

Vibration motor


Data collection

Barcode scanning (Optional)

2D Imager scanner

Honeywell N3603

2D

Symbologies

PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,

Maxicode,Hanxin Code,etc.


Camera

Rear camera

13MP HD camera,Support auto focus,

Flash, Anti-shake, Macro shooting

Front camera

2MP color camera

Authentication fingerprint (Optional)

Frequency

Configure TCS semiconductor sensor with live identification technology

Collection area

18.81x13.54 mm

Resolution

508 dpi, 8-bit grayscale,256*360

Extraction format

BMP / ISO

Secure encryption

AES, DES key encryption for host communication channel

Capacitive fingerprint (Optional)

Frequency

120MHz

Collection area

12.8x11.6 mm

Resolution

508 dpi, 192*192

Extraction format

BMP

Secure encryption

Open code communication instruction,customized data encryption

Fingerprint (Optional)

Collection area

10.5x11.5mm

Resolution

508 dpi,

Secure encryption

Support fingerprint unlock

ID card identification (Optional)

Radio frequency technology

Comply with ISO/IEC 14443type B standard, and "GA 450-2003 desktop resident ID card reader general technical requirements", "1GA450-2003 desktop resident ID card reader general technical requirements first revised but (draft)"

Security module

ID verification system dedicated module

Distance

0~5cm

Reading use

1.55

Frequency

13.5MHz±7kHz

NFC (optional)

Frequency

13.56MHz

Protocol

Support ISO14443A/B, 15693 agreement

Distance

2cm-5cm

User environment

Operating temperature

-20 - 55

Storage temperature

-40 - 70

Environment humidity

5%RH--95%RH(no condensation)

Drop specification

6 sides Supports 1.2 meters drops and 30 times

to the concrete within the operating temperature

Rolling test

500×0.5m rolling for 6 sides

Sealing

IP66

Accessories

Standard

Adapter, Data cable, Protective film,

Instruction manual
