Product Detail

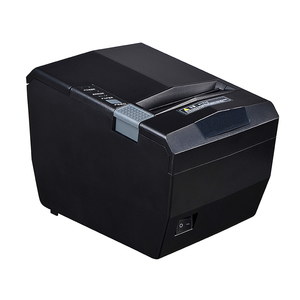

WD-P80 Desktop 80mm thermal printer
Item : 80mm thermal printer
Color : Black and white
Sales : 0
Print command : compatible with ESC/POS/OPOS
Bar code type : UPC-A/UPC-E/JAN13(EAN13) /JAN8(EAN8)CODABAR/ITF/CODE39/COD E93/CODE128, 2D Bar Codes
Print Speed : 250mm/second
Print Diameter : 80mm
Resolution : 203DPI
Dimension : 195×145×147mm(LxWxH )
interfaces : USB+LAN+RS232
Details

Product description


   WD-P80 Desktop 80mm thermal Durable industrial thermal Printer

support UPCA/UPCE/EAN13/EAN8/CODE39/I25/C odeBar/CODE128/CODE93/CODE11/MSI/ QRCORE/PDF417 and compatible with ESC/POS/OPOS Print command USB+LAN+RS232 interfaces thermal printer


Product specifications


PrintPrinting methodDirect thermal printing
Effective printing width72mm or 48mm
Resolution203dpi
Printing speed250mm/s
Printing density576 dots/line or 384 dots/line
Character setGB18030 (Simplified Chinese)
Print fontASCII Font A:12×24
ASCII Font B:9×17
Chinese: 24×24
Character per lineFont A-48 lines/Font B-64 lines/Chinese-24 lines
Paper specificationPaper width79.5±0.5mm
Paper roll diameterΦ80mm
Paper loadingEasy paper loading
BarcodesBarcode typeUPCA/UPCE/EAN13/EAN8/CODE39/I25/CodeBar/CODE128/CODE93
/CODE11/MSI/QRCORE/PDF417
ReliabilityThermal printing head150km
Auto cutter1 million cuts
InterfaceUSB+Serial+Lan
EmulationESC/POS/OPOS
DriverWIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/MAC
Power supplyDC 24V,2.5A
Cash drawer ControlDC 24V,1A
Certificate3C、CE、FCCID 、BIS、ROHS
weight1.07kg
Dimension (LxWxH )195×145×147mm
Environmenttemperatureworking temperature: 0~45℃
Storage:-10~60℃
humidityworking temperature: 20-90%
Storage:10-90%(paper exclused)

Product features

USB+LAN+RS232 3 interfaces

industrial metrial and it is more durable

SUPPORT UPCA/UPCE/EAN13/EAN8/CODE39/I25/C odeBar/CODE128/CODE93/CODE11/MSI/ QRCORE/PDF417 CODE

Product application
