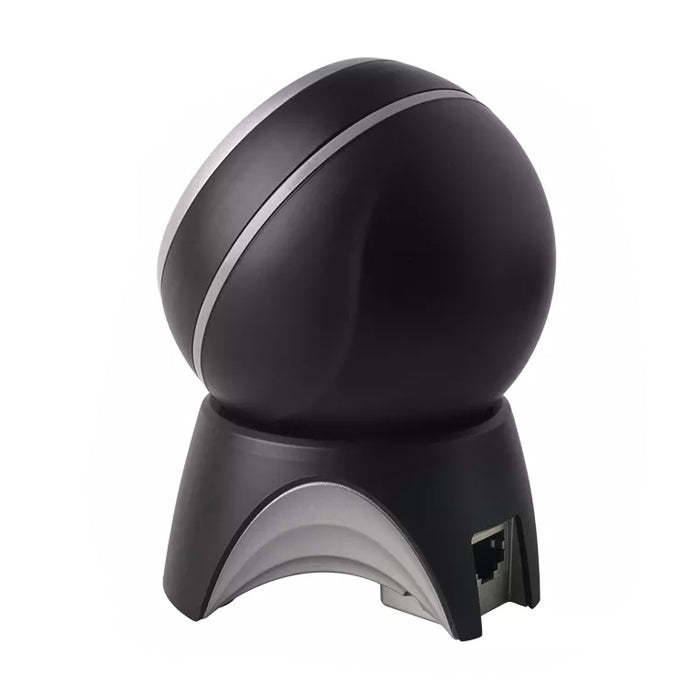

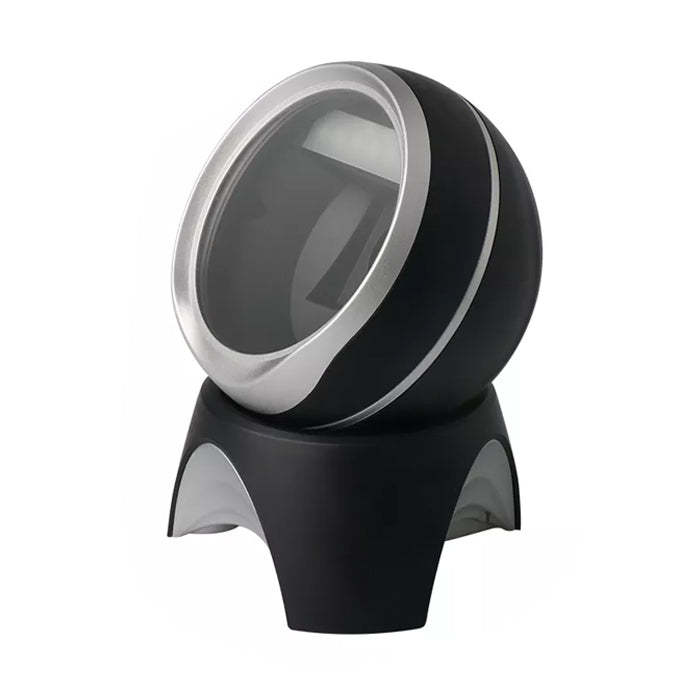

2D&1D Desktop Barcode Scanning Platform

Item No.: WD-1016
WD-1016 is a stylish desktop two-dimensional image scanning platform, using advanced CMOS image recognition technology, intelligent image recognition system.
Description
Description

Features

 rotatable design
 USES high-performance MCU to easily identify the mainstream one-dimensional or two-dimensional barcode;
 can easily read bar codes above 4MIL to meet the needs of daily scanning;
 2d imaging technology, paper, printing, plastic, screen barcode can be easily read.
 supports a variety of working modes (manual, continue, induction), which can meet different reading needs;

Performance

Scan Type CMOS
Light Source Red light
Resolution 5mil/0.127mm(PCS90%,Code 39)
Decoding speed 80CM/S
Depth of field 0-350mm
Scan Mode Continuous
Scan angle Roll±360°, Pitch±55°, Skew±50°PCS90%, Code 39, 10mil/0.25mm
Print Contrast Signal 20%
Ambient Light Dark environment, indoor natural light
Symbologies 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Strande 2 of 5, Codabar(NW-7),MSI Plessey,GS1 Databar(RSS),China Post,Telepen,etc.
2D: QR Code, Data Matrix,PDF417,MaxiCode, Aztec,HanXin Code, etc.



Physical Parameter

Weight 265g(No Cable)
Dimension (L)85mm * (W)92.5mm *(H)125mm
Communication Mode USBRS232
Interface Type USBDB9
Power Supply DC 5V@450mA(work



Environmental

Operating temperature -20℃ to 50℃
Storage  temperature -40℃ to 60℃
Humidity 5% to 95%non-condensing
Transport vibration Test 10H@125RPM



Accessories List

Cable USB Cable, used to connect the WD-1016  to a host device.
  RS232 Cable, used to connect the WD-1016  to a host device, with USB supply cable.
Power Adaptor Output: DC5V 1A, input: AC100~240V 50~60Hz(serial port optional).
