2D Wearable Bluetooth + 2.4GHz Wireless Ring Scanner

Item No.: WD-R630
Light Source: Red LED (625 + 10nm)
Illumination Scanning Speed: 300 scans/sec
Resolution: 4 mil
Working distance: 30m(max)
Battery: 350 mAh
Charging time: 2 to 3 hours
Description
Description
1 Optical performance
1.1 Decoding mode: 750*480CMOS
1.2 Lighting: Red laser LED (625±10nm)
1.3 Scanning mode: Imaging scanning
1.4 Storage capacity: 512K(Can store 5000-10000pcs barcodes
1.5 Accuracy: ≥5mil
1.6 Print contrast: 30%
2 Performance characteristics
Operating environment
2.1.1 Usage environment -10°C-60°C
2.1.2 Storage temperature -20°C-60°C
2.1.3 Storage humidity 5%-90%
2.1.4 Lighting 0-100,000 lx
Electrical characteristics
2.2.1 Max. power 0.912W
2.2.2 Working voltage 3.3V~4.2V±5%
2.2.3 Max. current 240mA
Electrical characteristics
3.3.1 Transmission mode Wireless Bluetooth BT4.0 (support protocol 2.0, 3.0, 4.0) requires an additional Bluetooth receiver to connect to the computer
3.3.2 Communication distance Open visual distance ≦30 meters
3.3.3 Battery capacity 320MAH
3.3.4 Charging time 2-3 hours
3.3.5 Usage Counter 35000 times
3.3.6 Battery life 30s into standby
3.3.7 Depth angle 34° V x 46° H (Vertical)
2.3.8 Scanning angle 360°, ±65°, ±60°
2.3.9 Scanning performance:
(Scanning depth)
EAN13(13mul)     50mm -195mm
Code39(5mil)      50mm -105mm
FDF417(6.67mil)   35mm - 135mm
Data Matrix(10mil)  35mm - 140mm
QR Code(15mil)    30mm - 165mm
3 Decoding ability
3.1 Decoding ability 2D: Airline 2 of 5, Aztec Code, Data Matrix, Grid Matrix Code, GS1 Composite Codes, Maxi Code, PDF417, QR Code
1D: Codabar, Codablock  A, Codablock  F, Code 11, Code32; Code 39, Code 93, Code 128, EAN-13 & EAN-8, Full ASCII Code39, GS1 Data Bar, Industrial 2 of 5, Interleaved 2 of 5, ISBN / ISSN, Matrix 2 of 5, MSI / Plessey, UPC-A/ UPC-E
3.2 Prompting mode Buzzer, LED Indicator
3.3 Scanning mode Ring button triggers scanning
3.4 Scanning speed Horizontal velocity: 5 inch/s. (12.7 cm)
3.5 Support interface USB charging port
4 Physical characteristics

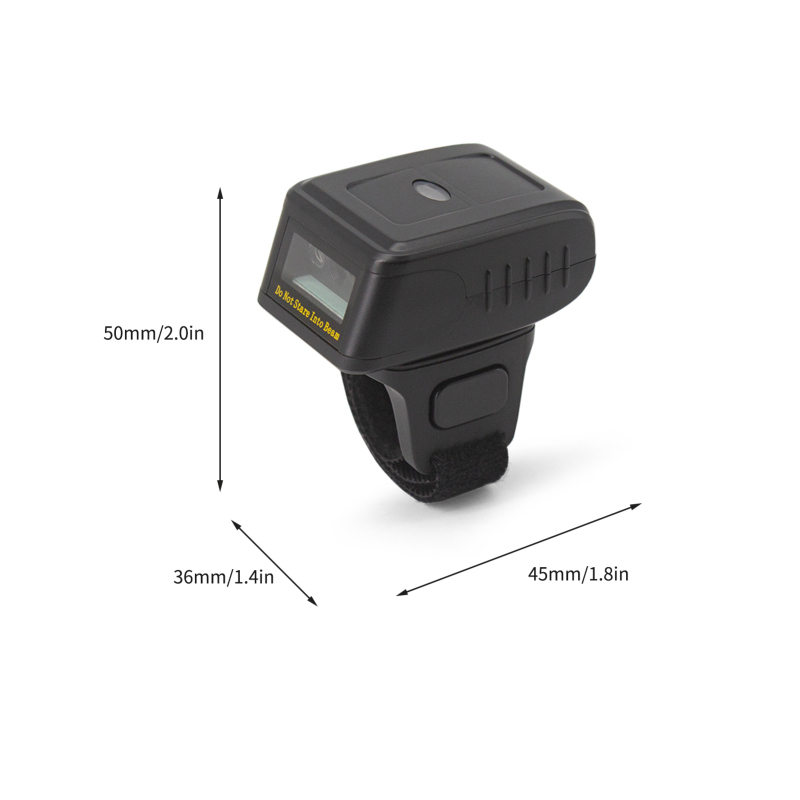

4.1 Dimension L*W*H (mm): 50*36*45mm
4.2 Weight 0.03kg
4.3 Wire 0.9m
4.4 Color Black
4.5 Housing material ABS+TPR



5 Safety regulations
5.1 Laser safety level: National laser safety standards
5.2 Waterproof, dustproof and seal level: IP67
5.3 Shock resistance: 1.5m free fall
