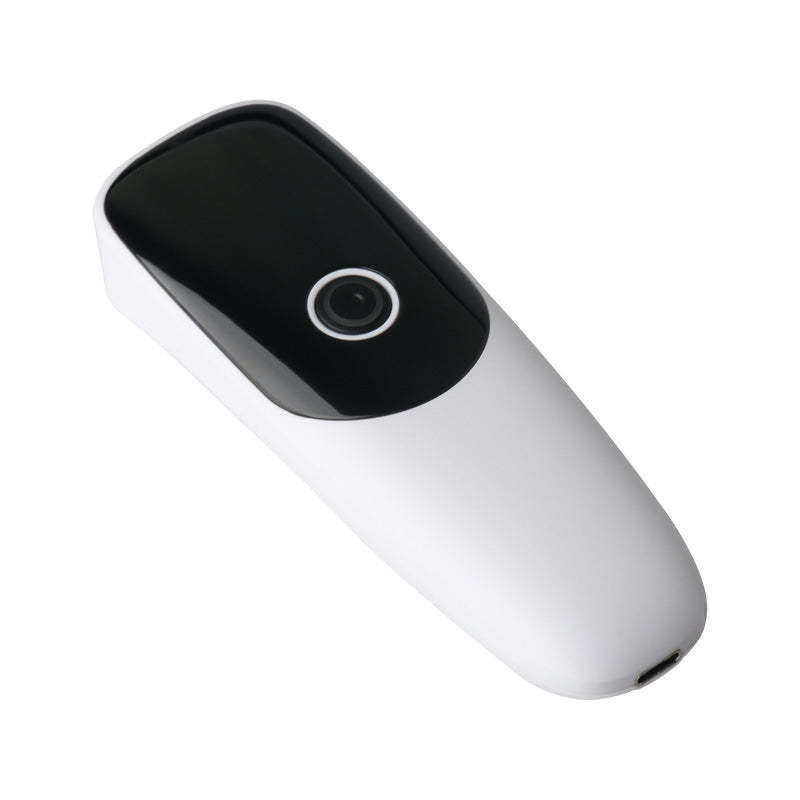

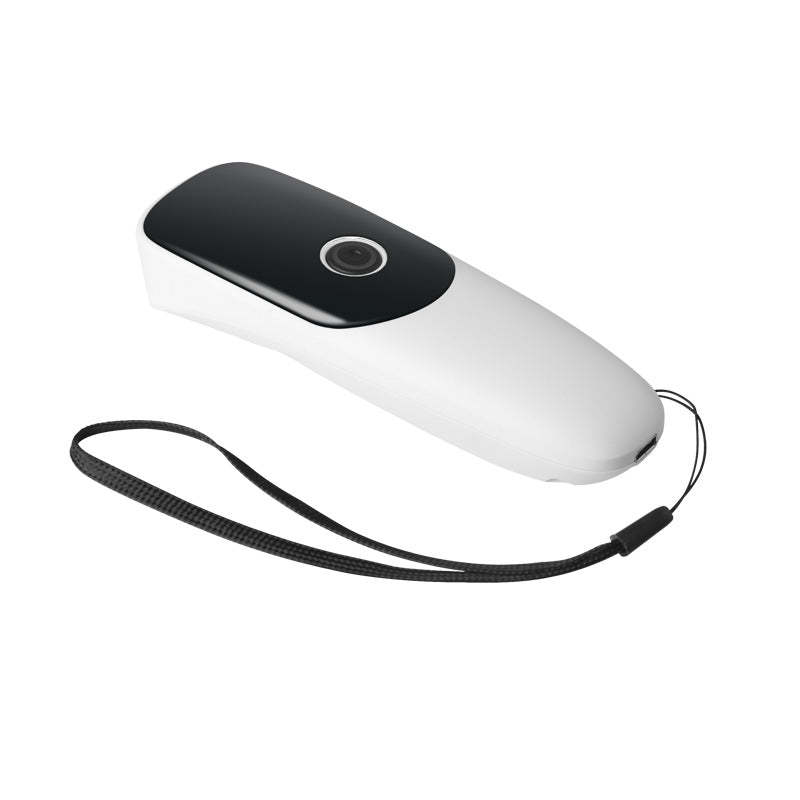

Wireless2.4G+Bluetooth Barcode Scanner

Item No.: BT66
WD-BT66 is a high-performance 2D bluetooth and wireless 2.4G barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics,
Description
Description

Features

  1. Wearable design, widely used in warehouse, express.
  2. Read all mainstream 1D 2D barcodes in the market easily.(3mil)
  3. 100,000 data storage capacity.
  4. Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
  5. Mode: Bluetooth(HID,SPP,BLE), Wireless2.4G, connected with PC, mobile phone easily.



Performance

Scan Type CMOS
Light Source Lighting: white LED(Automatically adjust brightness according to distance)   Aiming: Red LEDwavelength coverage 525nm
CPU 32-bit
Start time 750ms
Resolution 1280×800
Reading precision 1D:≥3mil,2D:≥8.7mil @PCS90%
Decoding speed 25CM/S
Visual angle Horizontal 40°× Vertical 30°
Depth of field 3mil:55~100mm,13mil:55~350mm
Scan Mode Trigger modeAuto sense mode
Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
Roll:±360°、Pitch:±60°or greater、Yaw:±70°or greater)
Print Contrast Signal ≥25%
Ambient Light 70000lux
Wireless communication mode Synchronization , storage
Wireless transmission distance Bluetooth 30 m, Wireless 2.4G 150m(Open distance)
Storage 16Mb(over 100,000 barcodes)
Battery capacity 1200mAh
Battery charging time About 3.5 h
Continuous working time 8h
Symbologies 1D:Codabar、Code39、Code32、Interleaved 2 of 5(ITF25)、Industrial 2 of 5 Industrial 25 code、Matrix 2 of 5、Code93、Code11、Code128、Gs1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、ISBN、ISSN、GS1 databar、GS1 databar limited、GS1 databar expanded、ISBT、MSI、Febraban(Brazil bank code)
2D:PDF417、Micro PDF417、QR Code、Micro QR、Data Matrix、Aztec

Physical Parameter

Weight ≈70g(without cable)
Dimension L130mm * W46.5mm * H28.5mm
Interface Type Type C
Power Supply DC5V, standby current:47mA,Decoded average current:200mA .

Environmental

Operating temperature -20℃ to 55℃
Storage  temperature -20℃ to 60
Humidity 5% to 95%non-condensing
Drop Height 1.5m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
High Temp. 60℃
Low Temp. -20℃
Transport vibration Test 10H@125RPM


Accessories List


Cable USB, connect the scanner to a host device and charging.
Receiver Used to receive and transmit scanner data.
Charger

Optional
